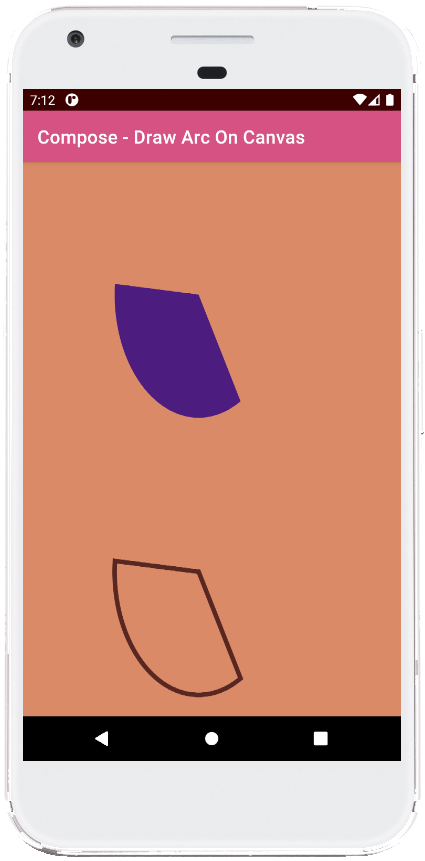

jetpack compose - Draw arc on canvas

MainActivity.kt

package com.cfsuman.jetpackcompose

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import androidx.activity.compose.setContent
import androidx.compose.foundation.Canvas
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.*
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.graphics.*
import androidx.compose.ui.graphics.drawscope.Stroke
import androidx.compose.ui.tooling.preview.Preview
import androidx.compose.ui.unit.dp

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        setContent {
            MainContent()
        }
    }


    @Composable
    fun MainContent(){
        Canvas(
            modifier = Modifier
                .fillMaxSize()
                .background(Color(0xFFDA8A67))
        )
        {
            drawArc(
                color = Color(0xFF4D1A7F),
                startAngle = 60F,
                sweepAngle = 125F,
                useCenter = true,
                topLeft = Offset(
                    x = 100.dp.toPx(),
                    y = 10.dp.toPx()
                ),
                size = size/2.25F
            )

            drawArc(
                color = Color(0xFF592720),
                startAngle = 60F,
                sweepAngle = 125F,
                useCenter = true,
                topLeft = Offset(
                    x = 100.dp.toPx(),
                    y = size.height/2 + 10.dp.toPx()
                ),
                size = size/2.25F,
                style = Stroke(width = 5.dp.toPx())
            )
        }
    }


    @Preview
    @Composable
    fun ComposablePreview(){
        //MainContent()
    }
}
