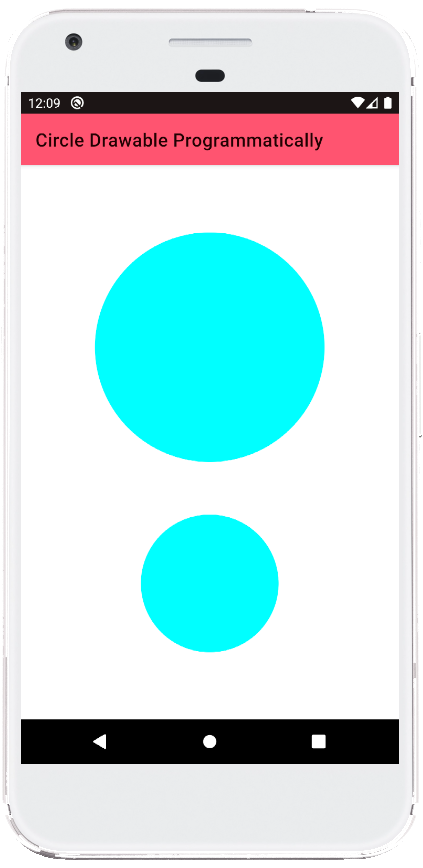

android kotlin - Circle drawable programmatically

MainActivity.kt

package com.example.jetpack

import android.graphics.Color
import android.graphics.drawable.GradientDrawable
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import kotlinx.android.synthetic.main.activity_main.*


class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        // set image view image from drawable
        imageView.setImageDrawable(drawCircleShape())
        imageView2.setImageDrawable(drawCircleShape())
    }
}


// method to create a circle drawable programmatically
private fun drawCircleShape():GradientDrawable{
    return GradientDrawable().apply {
        shape = GradientDrawable.OVAL
        cornerRadii = floatArrayOf(0f, 0f, 0f, 0f, 0f, 0f, 0f, 0f)
        setColor(Color.CYAN)

        // make sure width and height are same for circle shape
        // size is important, try to put same value as your view
        setSize(50,50)
    }
}
activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/constraintLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="0dp"
        android:layout_height="250dp"
        android:layout_marginStart="16dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        app:layout_constraintBottom_toTopOf="@+id/imageView2"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_chainStyle="spread"
        tools:srcCompat="@tools:sample/avatars" />

    <ImageView
        android:id="@+id/imageView2"
        android:layout_width="0dp"
        android:layout_height="150dp"
        android:layout_marginStart="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginBottom="16dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/imageView"
        tools:srcCompat="@tools:sample/avatars" />

</androidx.constraintlayout.widget.ConstraintLayout>
