android kotlin - Bottom navigation bar example

MainActivity.kt

package com.cfsuman.kotlintutorials

import android.app.Activity
import android.graphics.Color
import android.os.Bundle
import android.widget.*
import androidx.constraintlayout.widget.ConstraintLayout
import com.google.android.material.bottomnavigation.BottomNavigationView


class MainActivity : Activity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        // get the widgets reference from XML layout
        val rootLayout = findViewById<ConstraintLayout>(R.id.rootLayout)
        val textView = findViewById<TextView>(R.id.textView)
        val bottomNavigationView = findViewById<BottomNavigationView>(
            R.id.bottomNavigationView)


        // Set navigation item selected listener
        bottomNavigationView.setOnItemSelectedListener  {
            when(it.itemId){
                R.id.attach_file -> {
                    textView.text = "Attach File Clicked."
                    true
                }
                R.id.delete -> {
                    textView.text = "Delete Clicked."
                    true
                }R.id.insert_chart -> {
                textView.text = "Insert Chart Clicked."
                true
            }R.id.insert_link -> {
                textView.text = "Insert Link Clicked."
                true
            }R.id.backup ->{
                textView.text = "Backup Clicked."
                true
            }else -> false
            }
        }


        // Set navigation item re selected listener
        bottomNavigationView.setOnItemReselectedListener {
            when(it.itemId){
                R.id.attach_file -> textView.text =
                    "Reselected Attach File."
                R.id.delete -> textView.text =
                    "Reselected Delete."
                R.id.insert_chart -> textView.text =
                    "Reselected Insert Chart."
                R.id.insert_link -> textView.text =
                    "Reselected Insert Link."
                R.id.backup ->textView.text =
                    "Reselected Backup."
            }
        }


        // Set a click listener for root layout
        rootLayout.setOnClickListener{

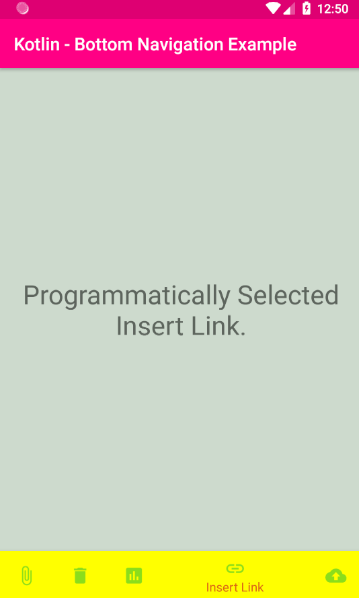

            // Programmatically select bottom navigation bar menu item
            bottomNavigationView.menu.getItem(3).isChecked = true
            textView.text = "Programmatically Selected  Insert Link."
        }


        // Set the bottom navigation view/bar background color
        /*bottomNavigationView.setBackgroundColor(
            Color.parseColor("#A2A2D0"))*/
    }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:id="@+id/rootLayout"
    android:background="#DCDCDC">

    <TextView
        android:id="@+id/textView"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:fontFamily="sans-serif"
        android:gravity="center"
        android:textSize="26sp"
        android:padding="12dp"
        app:layout_constraintBottom_toTopOf="@+id/bottomNavigationView"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <com.google.android.material.bottomnavigation.BottomNavigationView
        android:id="@+id/bottomNavigationView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:menu="@menu/bottom_navigation_menu" />

</androidx.constraintlayout.widget.ConstraintLayout>

res/menu/bottom_navigation_menu.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@+id/attach_file"
        android:title="Attach File"
        android:icon="@drawable/ic_action_attach_file"
        />
    <item
        android:id="@+id/delete"
        android:title="Delete"
        android:icon="@drawable/ic_action_delete"
        />
    <item
        android:id="@+id/insert_chart"
        android:title="Insert Chart"
        android:icon="@drawable/ic_action_insert_chart"
        />
    <item
        android:id="@+id/insert_link"
        android:title="Insert Link"
        android:icon="@drawable/ic_action_insert_link"
        />
    <item
        android:id="@+id/backup"
        android:title="Backup"
        android:icon="@drawable/ic_action_backup"
        />
</menu>
