android - How to block images loading in WebView

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="10dp"
    tools:context=".MainActivity"
    android:background="#fcfdfb"
    >
    <Button
        android:id="@+id/btn_block_images"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Block Image Loading"
        />
    <WebView
        android:id="@+id/web_view"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_below="@id/btn_block_images"
        />
</RelativeLayout>

MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.view.Window;
import android.webkit.WebChromeClient;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.widget.Button;
import android.widget.RelativeLayout;


public class MainActivity extends AppCompatActivity {
    private Context mContext;
    private Activity mActivity;

    private RelativeLayout mRelativeLayout;
    private WebView mWebView;
    private Button mButtonBlockImages;

    private String mUrl="http://android.oms.apps.opera.com/en_us/";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // Request window feature action bar
        requestWindowFeature(Window.FEATURE_ACTION_BAR);
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();
        // Get the activity
        mActivity = MainActivity.this;

        // Change the action bar color
        getSupportActionBar().setBackgroundDrawable(
                new ColorDrawable(Color.parseColor("#FF508FDC"))
        );

        // Get the widgets reference from XML layout
        mRelativeLayout = (RelativeLayout) findViewById(R.id.rl);
        mWebView = (WebView) findViewById(R.id.web_view);
        mButtonBlockImages = (Button) findViewById(R.id.btn_block_images);

        // Request to render the web page
        renderWebPage(mUrl);

        // Set a click listener for block image button
        mButtonBlockImages.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                /*
                    public WebSettings getSettings ()
                        Gets the WebSettings object used to control the settings for this WebView.

                    Returns
                        a WebSettings object that can be used to control this WebView's settings
                */
                /*
                    WebSettings
                        Manages settings state for a WebView. When a WebView is first created, it obtains a
                        set of default settings. These default settings will be returned from any getter
                        call. A WebSettings object obtained from WebView.getSettings() is tied to the life
                        of the WebView. If a WebView has been destroyed, any method call on WebSettings will
                        throw an IllegalStateException.
                */

                /*
                    public abstract void setBlockNetworkImage (boolean flag)
                        Sets whether the WebView should not load image resources from the network
                        (resources accessed via http and https URI schemes). Note that this method
                        has no effect unless getLoadsImagesAutomatically() returns true. Also note
                        that disabling all network loads using setBlockNetworkLoads(boolean) will
                        also prevent network images from loading, even if this flag is set to false.
                        When the value of this setting is changed from true to false, network images
                        resources referenced by content currently displayed by the WebView are
                        fetched automatically. The default is false.

                    Parameters
                        flag : whether the WebView should not load image resources from the network

                */

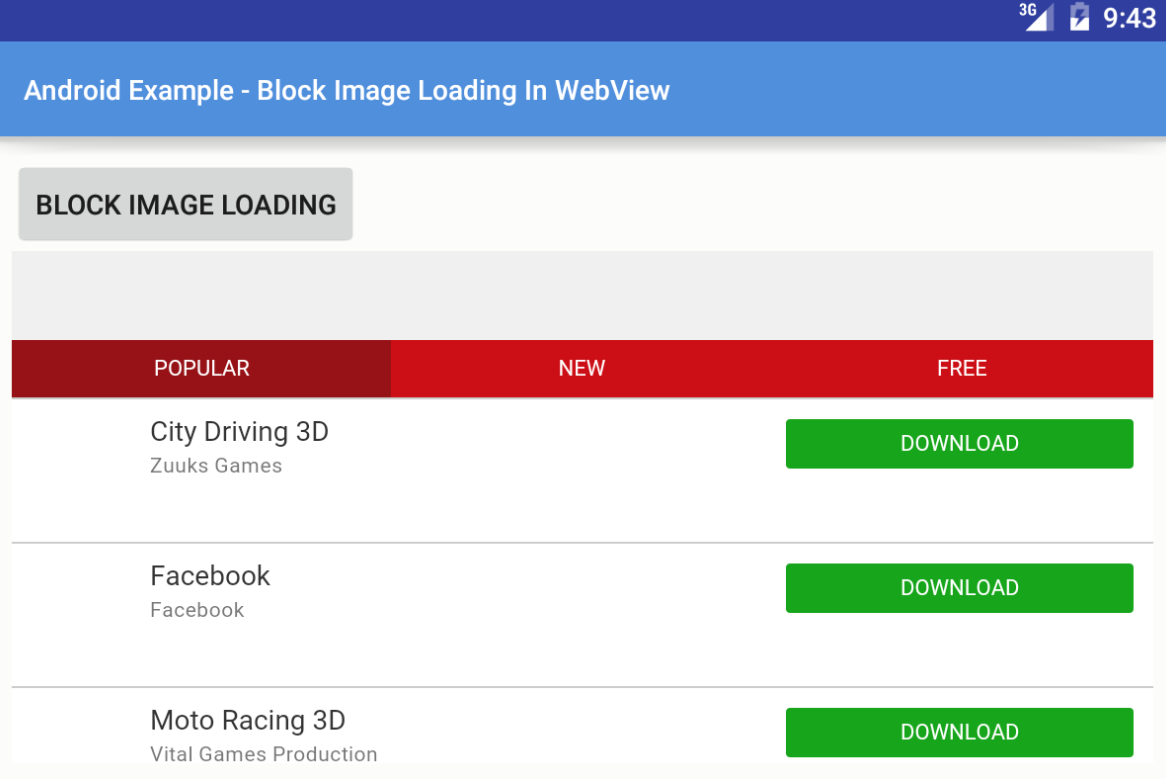

                // Block images to load in web view
                mWebView.getSettings().setBlockNetworkImage(true);

                /*
                    public abstract void setLoadsImagesAutomatically (boolean flag)
                        Sets whether the WebView should load image resources. Note that this method
                        controls loading of all images, including those embedded using the data URI
                        scheme. Use setBlockNetworkImage(boolean) to control loading only of images
                        specified using network URI schemes. Note that if the value of this setting
                        is changed from false to true, all images resources referenced by content
                        currently displayed by the WebView are loaded automatically.
                        The default is true.

                    Parameters
                        flag : whether the WebView should load image resources

                */
                // Block to loading images automatically
                mWebView.getSettings().setLoadsImagesAutomatically(false);

                // Re-render the current page in web view
                renderWebPage(mUrl);
            }
        });
    }

    // Custom method to render a web page
    protected void renderWebPage(String urlToRender) {
        mWebView.setWebViewClient(new WebViewClient() {
            @Override
            public void onPageStarted(WebView view, String url, Bitmap favicon) {
                // Do something on page loading started
                mUrl = url;
            }

            @Override
            public void onPageFinished(WebView view, String url) {
                // Do something when page loading finished
                mUrl = url;
            }
        });

        mWebView.setWebChromeClient(new WebChromeClient() {
            public void onProgressChanged(WebView view, int newProgress) {
            }
        });

        // Enable the javascript
        mWebView.getSettings().setJavaScriptEnabled(true);

        // Render the web page
        mWebView.loadUrl(urlToRender);
    }
}
